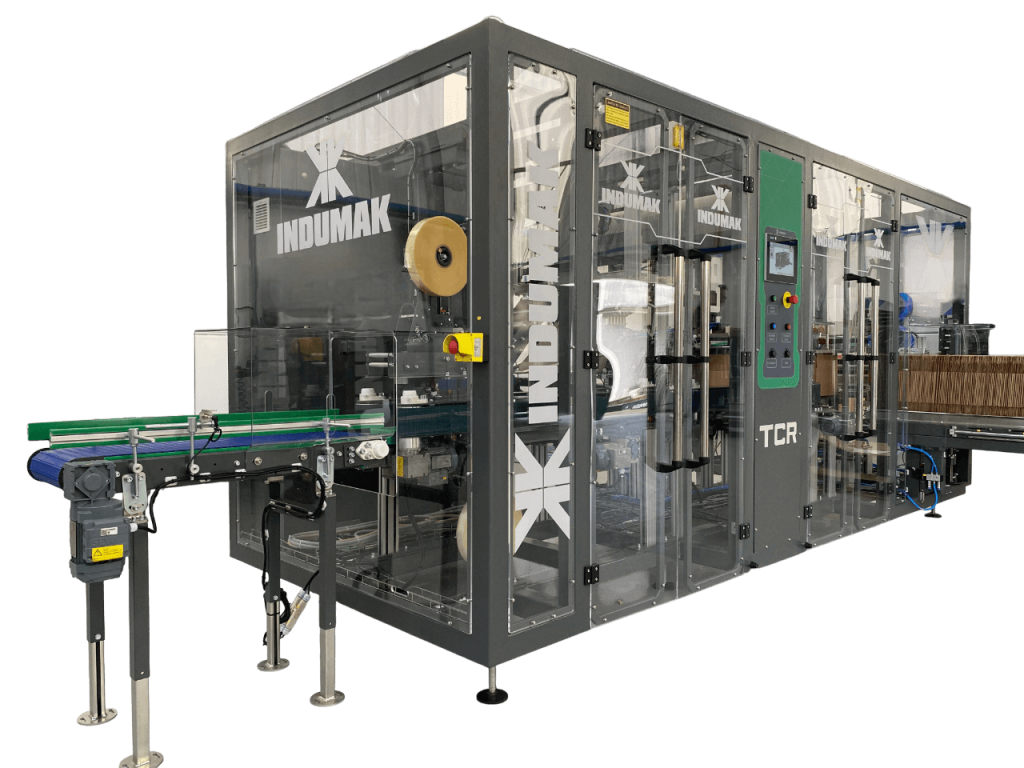

CARTESIAN TCR
CARTESIAN TCR
Boxing
The Products will arrive in a cadence on a conveyor belt at the entrance of the boxing machine, inside there is a system for organization in a forming tube, then the Cartesian insertion system will transfer the products to the box, previously armed by pneumatic devices, sensors and pull-down belts.
The box will be released for the automatic closing of the upper and lower flaps with adhesive tape or hot-melt glue, thus making the end of the cycle, releasing the box for the next stage of production.
– Machine with programmable logic control with interaction through HMI Touch Screen;
– Equipment monitored sensors that allow to identify the faults and levels of consumables;
– Equipment with safety according to international safety standards.
-
TECHNICAL DESCRIPTION
– Suitcase Box and 1/2 Briefcase;
– Maximum Product Production: TBA
– Production capacity of up to 10/15 boxes per minute;
– Voltage: 220_380V–50_60Hz;
– Closure with hot-melt tape or glue, “set with the customer”;
– Automation: Siemens;
– Sensors: Omron;
– Gearmotor: SEW;
– Pneumatic: Festo;
– Doors and protections in acrylic, with security sensors;
– Box frame system through suction cups and vacuum generating valves;
– Control through PLC & HMI Touch Screen (Setups);
– Traction of the box through parallel belt;
– Structure in carbon steel, with anticorrosive paint;
– Maximum width of adhesive tape up to 72mm.
